Galvanized Customizable Perforated Cable Elbow Bends for Efficient Cable Cross Management

Introduction

What Are Cable Elbow Bends and Why They Matter in Cable Management

In the intricate architecture of modern electrical and data systems, cable elbow bends serve as pivotal components. These angular connectors guide wiring pathways through directional changes, ensuring cables follow predefined routes without kinking, stressing, or tangling. Especially in high-density installations, elbow bends act as guardians of structure, facilitating order in environments where chaos could mean system failure.

The Growing Importance of Smart Cable Routing in Modern Infrastructure

With the exponential growth in connectivity demands and automation, efficient cable routing is no longer optional—it is imperative. Whether in commercial complexes, data hubs, or industrial environments, poorly managed cable systems can lead to overheating, signal interference, and safety hazards. Smart routing leverages engineering foresight, combining aesthetics, accessibility, and functionality to minimize downtime and optimize performance.

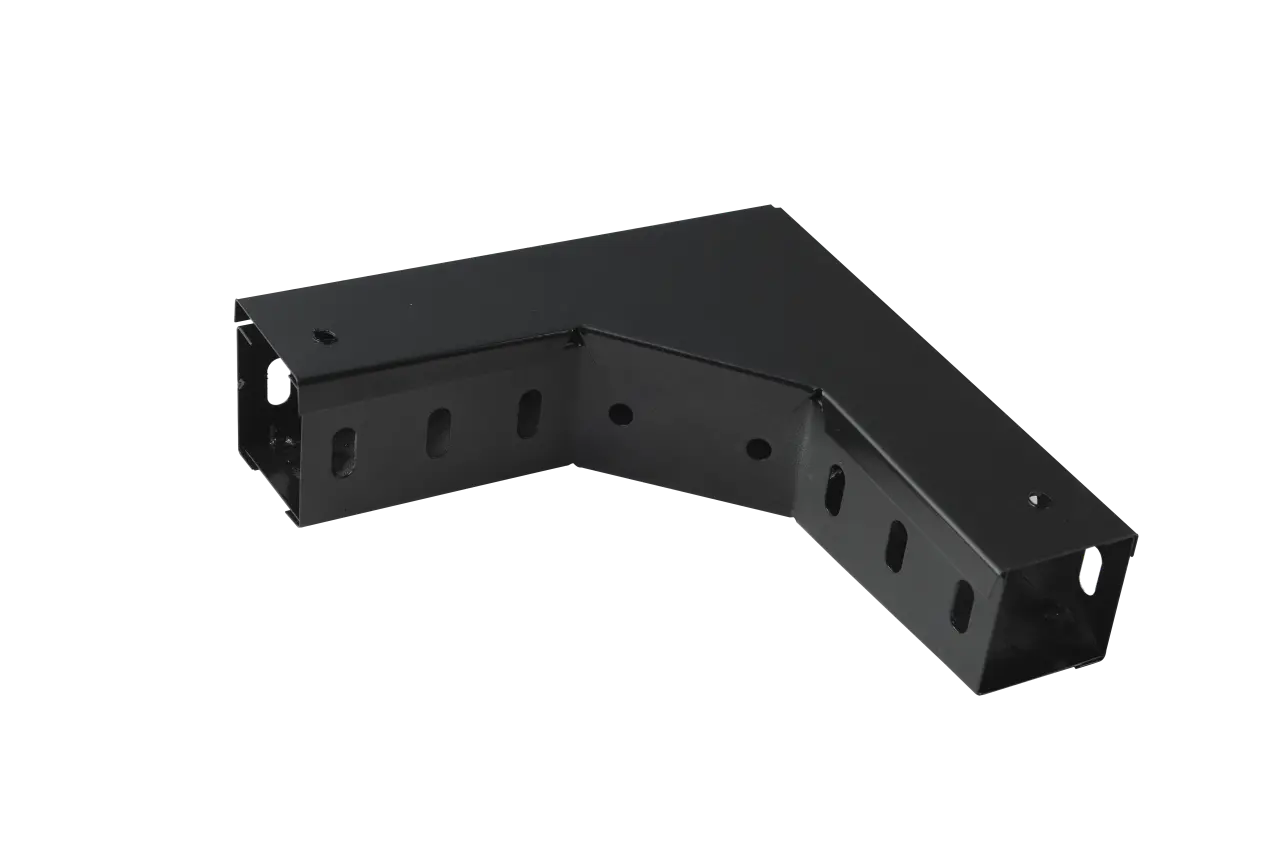

Overview of Galvanized Customizable Perforated Cable Elbow Bends



Galvanized customizable perforated cable elbow bends bring precision and durability into the fray. These components are not only corrosion-resistant but also engineered for adaptability, catering to bespoke installations. With perforated designs that enhance airflow and a galvanized finish that endures harsh conditions, these elbow bends are the linchpins of organized and sustainable cable management systems.



Understanding the Components and Materials



What Makes an Elbow Bend “Customizable” for Cable Solutions

Customization is about more than just dimensions. It encompasses the flexibility to adjust angles, the ability to conform to unique spatial constraints, and the incorporation of mounting compatibility. Customizable elbow bends are tailored to project-specific requirements—offering modularity, orientation options, and seamless integration into existing frameworks.

The Role of Perforation: Enhanced Ventilation and Cable Access

Perforated elbow bends are punctuated with strategically placed slots or holes, which allow air to circulate freely. This seemingly minor detail yields major benefits. Better ventilation mitigates heat accumulation, extending the lifespan of cables and preventing performance degradation. Furthermore, perforations afford technicians easier visual inspection and tool access—streamlining both installation and troubleshooting processes.

Benefits of Galvanized Steel: Strength, Corrosion Resistance, and Longevity

Galvanized steel is treated with a protective layer of zinc, making it exceptionally resilient to moisture, chemicals, and corrosive agents. This material choice ensures the elbow bend remains structurally sound for decades, even in outdoor or industrial settings. Its mechanical strength supports heavier cable loads, while its low maintenance profile contributes to lower lifecycle costs.



Key Benefits of Using Galvanized Perforated Cable Elbow Bends



Efficient Cable Cross Management for Complex Installations

In multi-level or multidirectional cable networks, the risk of congestion is significant. Galvanized elbow bends help circumvent these issues by enabling organized cross-routing. Their engineered contours maintain bend radii and structural spacing, allowing data and power lines to coexist without interference or abrasion.

Improved Airflow and Heat Dissipation in Dense Cable Areas

Cable Trays that lack airflow are prone to thermal buildup—especially in high-voltage or high-frequency applications. The perforated nature of these elbow bends reduces heat pockets, allowing ambient temperatures to normalize more quickly. This protects sensitive electronic components from premature degradation.

Ease of Maintenance and Quick Access for Technicians

Time is money in system maintenance. Galvanized perforated bends grant technicians faster access to individual Cable Paths, minimizing downtime. The open design and modular setup mean fewer tools and fewer disassemblies. It’s precision engineering designed with real-world practicality in mind.

Enhanced Safety and Reduced Risk of Cable Damage

Excessive cable bending or crimping can lead to insulation fractures, electromagnetic interference, or complete signal loss. Elbow bends maintain appropriate curvature, preserving cable integrity. Additionally, galvanized surfaces are smooth and burr-free, reducing the risk of sheathing damage during installation.



Customization Options for Specific Cable Routing Needs



Angle and Radius Adjustability for Tight Spaces

Not all installations are created equal. In space-constrained environments, adjustable elbow bends provide flexibility in angle configuration—whether 30°, 45°, 90°, or anything in between. Curvature radius can also be optimized to meet exact project specifications, ensuring compliance with bend tolerance standards.

Size Variants to Support Light to Heavy-Duty Cabling

From small-scale data lines to industrial-grade power conduits, different cable types require different support. Elbow bends come in a variety of dimensions, capable of accommodating everything from lightweight fiber optics to bulky armored cables. This scalability makes them suitable for virtually any application.

Surface Finishes and Coating Options for Different Environments

While standard galvanization suits most environments, special coatings can be applied for niche requirements. Powder coatings, epoxy layers, or antimicrobial finishes can be integrated for enhanced protection in food processing plants, hospitals, or marine environments.

Integration with Existing Cable Tray Systems and Accessories

True customization ensures compatibility. These elbow bends are engineered to dovetail with leading tray systems, brackets, and mounting accessories. Whether retrofitting an old system or designing anew, integration is seamless and secure.



Applications Across Industries and Environments



Commercial Buildings and Data Centers

In buildings where uptime is critical, structured cabling and thermal control are paramount. Elbow bends streamline ceiling and underfloor installations, enabling high-volume data transmission with minimal clutter.

Industrial Facilities and Manufacturing Plants

Harsh environments demand robust solutions. Galvanized elbow bends withstand vibrations, chemical exposure, and extreme temperatures while preserving cable functionality in automated assembly lines and control rooms.

Transportation Infrastructure: Railways, Airports, and Tunnels

Safety and reliability are non-negotiable in transit systems. These bends help organize power, signaling, and communication lines in challenging environments, offering high visibility and ease of maintenance.

Renewable Energy Installations: Solar and Wind Farms

Renewable projects often span vast, remote terrains. Elbow bends in galvanized steel ensure weatherproof routing of cables from panels and turbines to control units, reducing exposure risks and simplifying field maintenance.



Installation and Best Practices



Pre-Installation Planning and Layout Considerations

Thorough schematics are the bedrock of successful cable routing. Planning the elbow bend locations relative to junction points, load distribution, and airflow pathways ensures a future-proof installation.

Tools and Techniques for Secure Mounting

Secure mounting starts with precision drilling, corrosion-resistant fasteners, and bracket alignment. Using the right tools minimizes structural stress and ensures mechanical stability over time.

Tips for Ensuring Proper Alignment and Load Distribution

Improper alignment can create torque and strain on both the bend and the cables it supports. Equalizing cable weight and observing recommended load limits preserves system longevity and prevents structural warping.



Conclusion



Summarizing the Value of Galvanized Customizable Perforated Cable Elbow Bends

These components are more than metal—they're the unsung heroes of electrical infrastructure. They blend form and function, ensuring safety, scalability, and efficiency across diverse applications.

Choosing the Right Supplier for Long-Term Project Success

Not all bends are created equal. Partnering with a supplier who offers certified quality and responsive customization can dramatically influence project timelines and operational reliability. Shanghai Qiongkai Industry Co., Ltd. stands out as a trusted manufacturer. With a strong emphasis on engineering excellence, precise fabrication, and tailored solutions, Qiongkai ensures that every component aligns with the unique demands of your infrastructure. Their commitment to quality assurance and client satisfaction makes them a dependable partner for long-term success.
